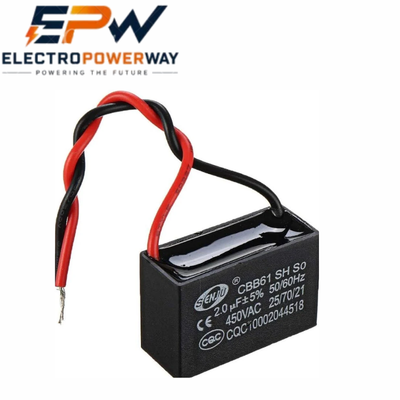

2UF 450V Capacitor

The 2UF 450V capacitor is a motor-run capacitor designed for compatible AC motor and electrical applications. With a nominal capacitance of 2 µF and a 450V AC voltage rating, it is suitable for equipment where these electrical specifications are required.

Motor-run capacitors are commonly used in single-phase AC motor systems. They help provide the electrical characteristics required for the motor’s auxiliary winding and can remain connected during normal operation. Depending on the equipment design, 2 µF motor capacitors can be found in applications involving fan motors, small pumps, blowers and other AC motor-driven equipment.

The 2UF 450V capacitor is also useful for replacement and maintenance applications. When an existing capacitor becomes defective or loses its electrical performance, a replacement with matching specifications can help restore the intended operation of compatible equipment.

2 µF Capacitance

The 2 µF specification indicates the capacitance value of the capacitor. Capacitance is one of the most important specifications when selecting a replacement motor capacitor.

If the original equipment specifies a 2 µF capacitor, a 2UF 450V capacitor may be an appropriate replacement provided that the voltage rating, capacitor type, physical dimensions and terminals are also compatible.

Some commercially available 2 µF motor-run capacitors use a ±5% capacitance tolerance, although the tolerance can vary by manufacturer and model.

450V AC Voltage Rating

The 450V specification refers to the capacitor’s rated AC voltage for the relevant product design. A number of 2 µF motor-run capacitors are specifically manufactured with a 450V AC rating.

The voltage rating should always be checked when replacing an existing capacitor. Do not select a capacitor only because the capacitance value is the same. The replacement should meet the equipment’s electrical requirements.

Motor Run Application

A 2UF 450V capacitor can be used as a motor-run capacitor when the equipment is designed for this specification.

Motor-run capacitors are commonly found in:

• Electric fans
• Ceiling fan systems
• Exhaust fans
• Small AC motors
• Water pumps
• Blowers
• HVAC equipment
• Motor-driven appliances
• Electrical equipment
• Repair and maintenance applications

Actual compatibility depends on the individual motor or equipment manufacturer’s specifications.

Polypropylene Construction

Many 2 µF / 450V motor-run capacitors use polypropylene or metallized polypropylene film construction. For example, commercially listed 2 µF/450V motor capacitors include polypropylene and metallized-PP designs.

However, the exact internal construction should be confirmed from the specific manufacturer’s datasheet rather than assumed for every 2UF 450V capacitor.

Replacement & Repair Applications

The 2UF 450V capacitor can be useful for electrical repair and maintenance when an existing capacitor has failed or needs replacement.

A faulty capacitor may contribute to symptoms such as:

• Motor difficulty starting
• Motor humming
• Reduced motor performance
• Irregular operation
• Motor failing to run correctly

These symptoms can have multiple causes, so the capacitor should be tested and the equipment diagnosed properly before replacement.

Check Before Buying

Before purchasing a 2UF 450V capacitor, compare the existing capacitor and equipment specifications.

Check:

Capacitance: 2 µF
Voltage: 450V AC
Capacitor Type: Confirm the required type
Tolerance: Check the original specification
Terminal Type: Match the existing connection
Dimensions: Confirm available space
Mounting: Check the mounting arrangement
Application: Confirm motor/equipment compatibility

This is especially important because two capacitors with the same 2 µF and 450V ratings can still have different physical sizes, terminals and mounting arrangements. For example, commercially available 2 µF/450V models can have different dimensions and connection configurations.

---

Technical Specifications

Commercial examples show that 2 µF/450V motor capacitors can be non-polarized and may use screw mounting or quick-connect/wire terminals depending on the model.

---

Benefits of 2UF 450V Capacitor

1. Suitable 2 µF Capacitance

Designed for equipment that specifically requires a 2 µF capacitor.

2. 450V AC Rating

Suitable for compatible applications requiring a capacitor with a 450V AC rating.

3. Motor Run Applications

Can be used in compatible single-phase AC motor systems.

4. Useful for Replacement

A practical option when replacing a matching capacitor during repair or maintenance.

5. Multiple Applications

Can be found in compatible fans, pumps, blowers and small AC motor systems.

6. Easy Specification Matching

The clearly defined 2 µF and 450V specifications make it easier to compare with the original capacitor.

---

Applications

The 2UF 450V capacitor may be suitable for:

• Electric Fans
• Ceiling Fans
• Exhaust Fans
• Small Motors
• Water Pumps
• Blower Motors
• HVAC Equipment
• Motor-Driven Appliances
• Electrical Repair
• Motor Maintenance

A 2 µF/450V motor capacitor is specifically listed for low-power AC motors such as fan motors and small pumps in some product specifications.

---

Installation & Safety

Electrical capacitors can retain electrical energy after the equipment has been disconnected from the power supply.

Before replacing a capacitor:

1. Switch off and isolate the power supply.
2. Verify that the equipment is disconnected from mains power.
3. Follow the manufacturer’s safety and wiring instructions.
4. Ensure the capacitor has been safely discharged using the appropriate procedure.
5. Confirm the replacement capacitor’s specifications.
6. Install the capacitor correctly.
7. Restore power only after the installation has been checked.

Important: Do not exceed the capacitor’s specified voltage rating, and do not replace a capacitor with a different capacitance unless the equipment manufacturer specifically permits it.
