ANENG AN113D Digital Multimeter

Description

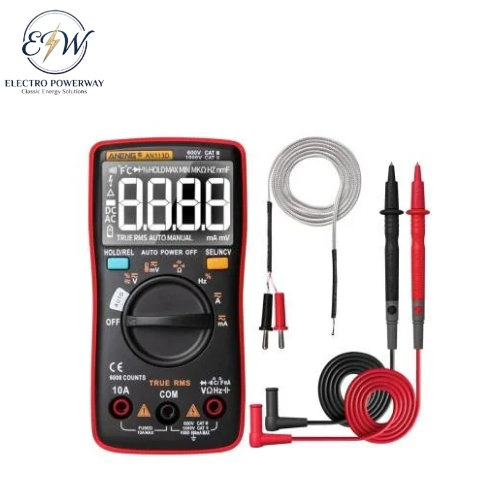

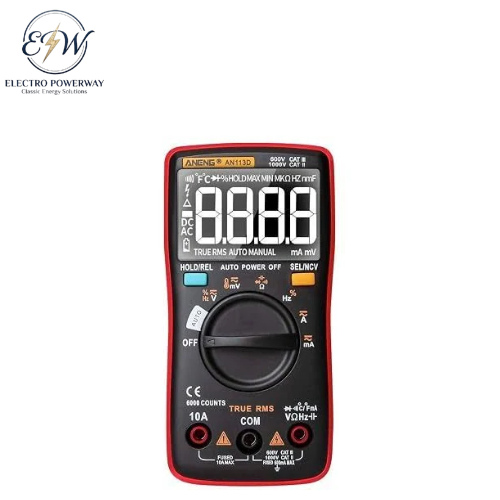

ANENG AN113D Digital Multimeter

The ANENG AN113D Digital Multimeter is a multifunctional auto-ranging electrical testing instrument designed for electronics, electrical troubleshooting, DIY projects, laboratory work and general maintenance. It features a 6000-count LCD display and True RMS measurement, providing clear readings and reliable AC measurement performance across a wide range of applications.

The AN113D combines multiple measurement functions in one compact handheld device. It can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle and temperature, while also providing diode, continuity and non-contact voltage detection functions.

6000 Counts Digital Display

The ANENG AN113D uses a 6000-count LCD display with an update rate of approximately three readings per second. The display provides easy-to-read measurement values and includes a low-battery indication to help users know when the batteries need replacement.

True RMS Measurement

One of the main advantages of the ANENG AN113D Digital Multimeter is its True RMS capability. True RMS technology is useful when measuring AC signals that may not have a simple sinusoidal waveform, helping provide more representative AC measurements.

Auto-Ranging Function

The auto-ranging system automatically selects an appropriate measurement range, making everyday testing easier and faster. This is particularly useful for users who regularly work with different voltage, current and resistance values.

Multiple Measurement Functions

The AN113D is designed as a multifunctional testing instrument. Its supported functions include:

• AC voltage
• DC voltage
• AC current
• DC current
• Resistance
• Capacitance
• Frequency
• Duty cycle
• Temperature
• Diode testing
• Continuity testing
• NCV/non-contact voltage detection

This wide range of functions makes the multimeter suitable for electronics repair, electrical maintenance and DIY testing.

AC/DC Voltage Testing

The ANENG AN113D Digital Multimeter supports DC voltage measurement up to 1000V and AC voltage measurement up to 750V, according to the published specifications. Users should always follow the meter’s safety limits and select the correct function before testing.

AC/DC Current Measurement

The multimeter supports AC and DC current measurements with ranges extending to 10A. It can therefore be used for a variety of electronic and electrical troubleshooting applications, provided the circuit and measurement setup remain within the specified limits.

Resistance and Capacitance Measurement

The AN113D can measure resistance from low-ohm values up to 60MΩ, making it useful for testing resistors, wiring and other electrical components. It also supports capacitance measurement up to 9.999mF according to the published specifications.

Frequency and Duty Cycle

For electronics testing, the ANENG AN113D supports frequency measurement up to 9.999MHz and duty-cycle measurement from approximately 1% to 99%. This makes it useful for checking various electronic signals and circuits.

Temperature Measurement

The meter also supports temperature measurement from approximately -20°C to 1000°C, with Fahrenheit measurement available up to 1832°F, according to the published specifications.

NCV and Continuity Testing

The built-in NCV (Non-Contact Voltage) function can help detect the presence of AC voltage without making direct electrical contact, while the continuity function can be used to check whether an electrical path is complete. The meter also includes diode testing.

Data Hold and Auto Power Off

The Data Hold function allows users to freeze a measurement on the display for easier reading or recording. An Auto Power Off function helps conserve battery power when the instrument is not being used.

Compact Handheld Design

The AN113D has a compact ABS/PVC construction. Published specifications list dimensions of approximately 130 × 65 × 32 mm and a weight of about 114g without batteries. This makes it convenient to carry in an electronics toolkit or workshop.

Suitable for Electronics and Electrical Work

The ANENG AN113D Digital Multimeter is suitable for a wide range of applications, including:

• Electronics repair
• Electrical troubleshooting
• PCB testing
• DIY electronics projects
• Battery testing
• Component testing
• Laboratory work
• Workshop maintenance
• Automotive electrical testing
• Educational and student projects

Its combination of auto-ranging, True RMS, multiple measurement modes and a 6000-count display makes it a versatile choice for both hobbyists and technicians.

Safety Note

Always select the correct measurement function and range before connecting the test leads. The manufacturer’s manual warns not to measure circuits above the specified maximum input rating and recommends disconnecting the test leads before changing modes. Do not use damaged test leads or operate the instrument with wet hands.
