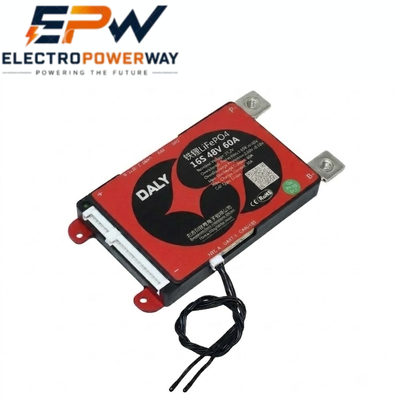

16S 48V 60A BMS Li-ion

16S 48V 60A BMS Li-ion

The 16S 48V 60A BMS Li-ion is a Battery Management System designed for 16-series lithium-ion battery packs. It provides battery protection, cell monitoring and balancing support for 48V-class lithium-ion battery applications.

With a 60A continuous discharge rating, the 16S 48V 60A BMS Li-ion is suitable for applications that require higher battery current, including electric scooters, e-bikes, electric vehicles, solar backup systems, energy storage and custom lithium-ion battery packs. Current 16S 60A Li-ion BMS products are specified for 16-series Li-ion/NMC packs and can include over-voltage, under-voltage, over-current, short-circuit and temperature protection.

16S 48V Li-ion Battery Configuration

The 16S 48V 60A BMS Li-ion is designed for 16 cells or cell groups connected in series.

For a typical Li-ion cell with approximately 3.6V nominal voltage:

16 × 3.6V = 57.6V nominal

For a typical 3.7V nominal Li-ion cell:

16 × 3.7V = 59.2V nominal

This is why 16S lithium-ion battery packs are commonly marketed as 60V-class battery systems. A standard Li-ion cell with a 4.2V maximum voltage gives:

16 × 4.2V = 67.2V maximum charge voltage

A 16S Li-ion BMS therefore needs to be matched with the correct 16S Li-ion charging voltage.

60A Continuous Discharge

The 16S 48V 60A BMS Li-ion is designed for 60A continuous discharge.

This makes it suitable for higher-current battery applications where a lower-rated BMS may not provide sufficient continuous current capacity.

The complete battery system must also be designed for the required current. Battery cells, nickel strips, busbars, cables, connectors, fuse, controller and other electrical components should all have appropriate current ratings.

The 60A BMS rating should not be treated as the maximum capability of the complete battery pack.

Lithium-ion Battery Protection

The main function of the 16S 48V 60A BMS Li-ion is to monitor and protect the connected lithium-ion battery pack.

Depending on the exact model, protection functions may include:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature protection
• Cell voltage monitoring
• Cell balancing

Different 16S 60A BMS models can have different protection thresholds and features, so the exact model specification should always be checked.

Cell Voltage Monitoring

A 16S battery pack contains 16 series-connected cell groups. During normal charging and discharging, cell groups can develop different voltage levels due to differences in capacity, internal resistance, age and operating conditions.

The 16S 48V 60A BMS Li-ion monitors individual cell groups through its balance/sense connections.

This allows the BMS to detect abnormal cell voltage conditions and activate the relevant protection function according to its configured parameters.

Cell Balancing

Cell balancing helps reduce voltage differences between individual series-connected cells or cell groups.

A compatible 16S 48V 60A BMS Li-ion can provide passive balancing during charging. Some commercially available 16S 60A models specify passive balancing, while other smart BMS versions may use different balancing configurations.

The exact balancing current should be confirmed for the specific BMS model.

Overcharge Protection

The 16S 48V 60A BMS Li-ion monitors cell voltage during charging.

If an individual cell reaches the configured overcharge protection threshold, the BMS can disconnect the charging circuit according to its design.

For a typical 16S Li-ion battery using 4.2V maximum cell voltage:

16 × 4.2V = 67.2V

Therefore, a standard 16S Li-ion battery is commonly charged using a 67.2V Li-ion charger.

Over-Discharge Protection

The 16S 48V 60A BMS Li-ion can provide over-discharge protection by monitoring individual cell-group voltage.

If a cell group falls below the configured low-voltage protection threshold, the BMS can disconnect the discharge circuit.

This helps reduce excessive discharge of individual lithium-ion cells.

Overcurrent Protection

The BMS monitors current flowing through the battery protection circuit.

If the current exceeds the configured protection threshold, the BMS can disconnect the output according to its design.

The 60A continuous discharge rating is different from the exact overcurrent protection trip point. The trip threshold depends on the specific BMS model.

Short-Circuit Protection

A battery short circuit can cause extremely high current flow.

A compatible 16S 48V 60A BMS Li-ion can provide short-circuit protection by disconnecting the battery output when a short-circuit condition is detected.

The response time and recovery behavior are model dependent.

Temperature Protection

Some versions of the 16S 48V 60A BMS Li-ion include NTC temperature sensors for monitoring battery or BMS temperature.

Temperature protection can be especially useful in electric scooters, e-bikes, EVs and other high-current applications.

Some commercially available 16S 60A Li-ion BMS models specifically include NTC temperature monitoring.

Applications

The 16S 48V 60A BMS Li-ion can be used in:

• Electric scooters
• E-bikes
• Electric motorcycles
• Electric vehicles
• 60V-class EV battery packs
• Solar backup systems
• Energy storage systems
• UPS systems
• Portable power systems
• DIY lithium-ion battery packs
• Robotics
• Industrial equipment
• Custom battery projects

Electric Scooter & E-Bike Applications

The 16S 48V 60A BMS Li-ion is suitable for compatible electric scooter and e-bike battery packs.

A 60A continuous BMS can support higher-current applications, but the actual suitability depends on the motor controller, battery cells and wiring.

The BMS should always be selected according to both the battery’s series configuration and chemistry.

Solar & Energy Storage Applications

The 16S 48V 60A BMS Li-ion can also be used for compatible lithium-ion energy-storage systems.

Potential applications include:

• Solar battery storage
• Backup power
• UPS systems
• Off-grid systems
• Portable power stations
• Custom energy-storage packs

For solar and inverter applications, verify the BMS communication, charge current and discharge current requirements before installation.

Smart BMS Options

Some versions of the 16S 48V 60A BMS Li-ion are available as smart BMS products.

Depending on the model, communication options may include:

• Bluetooth
• UART
• RS485
• CAN
• Mobile-app monitoring

For example, current 16S 60A smart Li-ion BMS products are available with CAN, UART/RS485 and optional monitoring functions.

Bluetooth, CAN, RS485 or UART should not be assumed unless included with the exact product variant.

Common Port Configuration

The exact port design depends on the BMS model.

Some 16S 48V 60A BMS Li-ion versions use a common port for charging and discharging, while other designs may use separate charging and discharge ports.

Always follow the wiring diagram supplied with the exact BMS.

Custom Battery Pack Assembly

The 16S 48V 60A BMS Li-ion can be used for custom battery pack assembly when the battery configuration matches the BMS.

It can be used with compatible lithium-ion cells such as cylindrical, pouch or prismatic cells.

The cells should be properly matched for:

• Chemistry
• Voltage
• Capacity
• Internal resistance
• Discharge capability

The balance wires must be connected to the correct series cell positions.

Why Choose 16S 48V 60A BMS Li-ion?

The 16S 48V 60A BMS Li-ion provides a practical battery protection and management solution for 16-series lithium-ion battery packs.

Its 60A continuous discharge rating makes it suitable for higher-current applications such as electric scooters, e-bikes, EV battery packs and energy-storage systems.

Cell monitoring, balancing and protection functions help maintain safer battery operation when the BMS is correctly matched to the battery pack.
