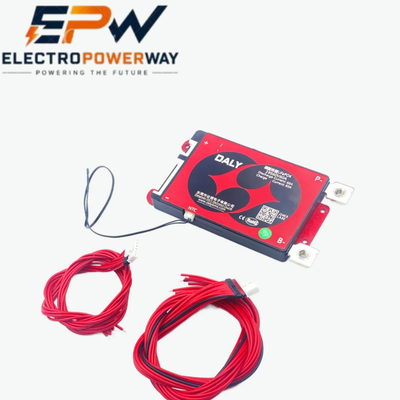

19S 60V 60A LFP BMS

19S 60V 60A LFP BMS

The 19S 60V 60A LFP BMS is a Battery Management System designed for 19-series LiFePO4 (LFP) battery packs. This BMS is designed to provide battery protection and cell monitoring for 60V-class lithium iron phosphate battery systems. With a 60A continuous discharge rating, the 19S 60V 60A LFP BMS is suitable for higher-current applications such as electric vehicles, electric scooters, e-bikes, energy storage systems, backup power systems and custom LiFePO4 battery packs.

A Battery Management System is an important component of a lithium battery pack. It monitors individual cell groups and helps protect the battery pack against abnormal operating conditions. The 19S 60V 60A LFP BMS is designed for battery pack builders and users who require a BMS specifically matched to a 19S LiFePO4 configuration.

19S LiFePO4 Battery Configuration

The 19S 60V 60A LFP BMS is designed for a battery pack containing 19 cells or cell groups connected in series. A typical LiFePO4 cell has a nominal voltage of approximately 3.2V. Therefore, a 19S LiFePO4 battery pack has a nominal voltage of approximately 60.8V.

Using a typical maximum charging voltage of 3.65V per LiFePO4 cell, a 19S battery pack can reach approximately 69.35V at full charge.

The battery is therefore commonly referred to as a 60V LFP battery system.

Always confirm the exact charging voltage recommended for the specific cells and BMS before installation.

60A Continuous Discharge

The 19S 60V 60A LFP BMS is designed with a 60A continuous discharge rating, making it suitable for applications requiring higher continuous current.

The 60A BMS rating should be considered together with the specifications of the complete battery pack. The LiFePO4 cells, busbars, nickel strips, cables, connectors, fuse and motor controller must all be capable of safely handling the intended current.

For best performance and reliability, the battery cells should have an appropriate continuous discharge capability for the application.

LiFePO4 Battery Protection

The main purpose of the 19S 60V 60A LFP BMS is to provide protection and monitoring for the connected LiFePO4 battery pack.

Depending on the exact BMS version, protection functions may include:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature protection
• Cell voltage monitoring
• Cell balancing

These functions help keep the battery pack within the configured operating limits.

Cell Voltage Monitoring

A 19S battery contains 19 series-connected cell groups. During charging and discharging, individual cell groups can develop different voltage levels because of differences in cell capacity, internal resistance, age and usage.

The 19S 60V 60A LFP BMS monitors the individual cell groups through its balance or sense wires. This allows the BMS to detect abnormal voltage conditions and respond according to its configured protection parameters.

Cell-level monitoring is particularly important in series-connected battery packs because the overall battery voltage depends on every cell group.

Cell Balancing

A compatible 19S 60V 60A LFP BMS can provide cell balancing to help reduce voltage differences between individual series-connected LiFePO4 cell groups.

Cell balancing is useful during charging because it helps maintain better voltage consistency across the battery pack. This can improve the usable performance of a properly matched battery pack.

The exact balancing method and balancing current depend on the specific BMS model.

Overcharge Protection

LiFePO4 cells must be charged within their recommended voltage limits. The 19S 60V 60A LFP BMS monitors cell-group voltage and can activate overcharge protection when the configured threshold is reached.

For a typical 19S LiFePO4 configuration with a 3.65V maximum cell voltage, the battery pack charging voltage is approximately 69.35V.

A compatible charger designed for a 19S LiFePO4 battery pack should be used.

Over-Discharge Protection

The 19S 60V 60A LFP BMS can also provide over-discharge protection according to its configured parameters. If a cell group reaches the specified low-voltage protection threshold, the BMS can disconnect the discharge circuit.

This helps reduce the possibility of excessive discharge of individual LiFePO4 cells.

Correct battery design and appropriate cell selection are still essential for reliable operation.

Overcurrent Protection

The 19S 60V 60A LFP BMS monitors current flowing through the battery protection circuit. If the current exceeds the configured protection threshold, the BMS can disconnect the output according to its design.

The 60A continuous rating does not necessarily represent the exact overcurrent trip point. Protection thresholds are determined by the specific BMS model.

Short-Circuit Protection

Short circuits can result in very high current flow and potentially damage battery components. A compatible 19S 60A LFP BMS can provide short-circuit protection by disconnecting the battery output when a short-circuit condition is detected.

The response time and recovery behavior depend on the particular BMS design.

Temperature Protection

Some versions of the 19S 60V 60A LFP BMS include temperature sensors for monitoring the battery or BMS operating temperature.

Temperature monitoring can be useful in electric vehicles, e-bikes, electric scooters and energy-storage systems where the battery can experience higher current loads.

The number of temperature sensors and exact protection thresholds depend on the specific BMS version.

Applications

The 19S 60V 60A LFP BMS can be used for a variety of LiFePO4 battery applications, including:

• Electric vehicles
• Electric scooters
• Electric motorcycles
• E-bikes
• Solar energy storage
• Backup power systems
• UPS systems
• DIY LiFePO4 battery packs
• Portable power systems
• Robotics
• Industrial equipment
• Custom battery projects

Custom Battery Pack Applications

The 19S 60V 60A LFP BMS is suitable for custom battery pack assembly when the battery chemistry and configuration match the BMS.

It can be used with compatible LiFePO4 cylindrical, prismatic or pouch cells. The cells should have suitable capacity and discharge characteristics for the intended application.

The balance wires must be connected to the correct cell-group sequence. Incorrect wiring can damage the BMS or battery cells.

60V LiFePO4 Battery System

The term 60V LFP BMS describes the voltage class of the battery system. A 19S LiFePO4 battery pack using approximately 3.2V nominal cells provides approximately 60.8V nominal voltage.

At approximately 3.65V per cell, the maximum pack voltage is approximately 69.35V.

Therefore, the 19S 60V 60A LFP BMS should be paired with a charger specifically designed for a 19S LiFePO4 battery pack.

Why Choose 19S 60V 60A LFP BMS?

The 19S 60V 60A LFP BMS offers a practical battery protection and management solution for 19-series LiFePO4 battery packs.

Its 60A continuous discharge capability makes it suitable for applications that require higher current than standard lower-rated BMS boards. Cell monitoring, balancing support and protection functions can help manage battery operation and improve system reliability when the BMS is correctly matched to the battery.

It is suitable for EV battery builders, electric mobility manufacturers, battery repair workshops, DIY battery pack builders and energy-storage projects.
