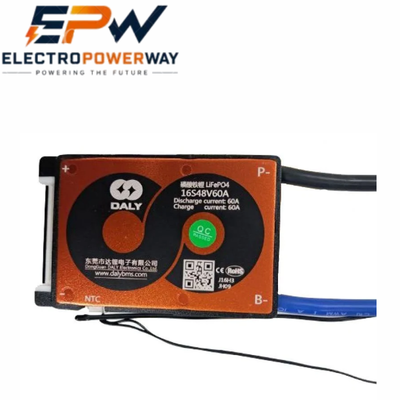

The 16S 48V 60A LFP BMS is a Battery Management System designed for 16-series LiFePO4 (LFP) battery packs. It helps monitor battery cell groups and provides protection during charging and discharging.

With a 60A continuous discharge rating, the 16S 48V 60A LFP BMS is suitable for applications that require more current than a standard 20A or 40A BMS. It can be used in compatible electric scooters, e-bikes, electric vehicles, solar battery systems, backup power systems, energy storage systems and custom LiFePO4 battery packs.

The BMS should always be matched with the correct battery chemistry, series configuration, current requirement and charging voltage.

16S LiFePO4 Battery Configuration

The 16S 48V 60A LFP BMS is designed for 16 cells or cell groups connected in series.

A typical LiFePO4 cell has a nominal voltage of approximately 3.2V.

16 × 3.2V = 51.2V nominal voltage

A typical maximum voltage for a LiFePO4 cell is approximately 3.65V.

16 × 3.65V = 58.4V maximum charge voltage

This is why a 16S LiFePO4 battery is commonly marketed as a 48V LiFePO4 battery, even though its nominal voltage is approximately 51.2V.

60A Continuous Discharge

The 16S 48V 60A LFP BMS has a stated 60A continuous discharge rating.

This makes it suitable for battery applications requiring continuous current within the BMS rating.

The BMS rating is only one part of the complete battery system. The LiFePO4 cells must also support the required current. Battery cables, busbars, connectors, nickel strips, fuse and controller should also be appropriately rated.

For high-current applications, proper component selection is important for reliable battery operation.

Battery Protection

The 16S 48V 60A LFP BMS helps provide protection for the connected LiFePO4 battery pack.

Depending on the exact model, protection functions can include:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature protection
• Cell voltage monitoring
• Cell balancing

The exact protection limits and functions can vary by BMS model.

Overcharge Protection

During charging, the 16S 48V 60A LFP BMS monitors the voltage of individual cell groups.

If a cell group reaches the configured overcharge protection limit, the BMS can stop or disconnect charging according to its design.

For a typical 16S LiFePO4 battery, the maximum charging voltage is approximately 58.4V.

A charger designed specifically for a 16S LiFePO4 battery should therefore be used.

Over-Discharge Protection

The 16S 48V 60A LFP BMS monitors cell voltage during discharge.

If an individual cell group falls below its configured low-voltage protection threshold, the BMS can disconnect the discharge circuit.

This helps reduce excessive discharge of individual LiFePO4 cells.

Overcurrent Protection

The BMS monitors the current passing through the battery protection circuit.

If the current exceeds the configured protection threshold, the BMS can disconnect the output.

The 60A continuous discharge rating should not be confused with the exact overcurrent protection trip value. The actual protection threshold depends on the particular BMS model.

Short-Circuit Protection

The 16S 48V 60A LFP BMS may provide short-circuit protection depending on the model.

When a short-circuit condition is detected, a compatible BMS can disconnect the battery output to help protect the battery system.

The response time and recovery method depend on the specific BMS design.

Cell Voltage Monitoring

A 16S LiFePO4 battery consists of 16 series-connected cell groups.

The 16S 48V 60A LFP BMS monitors these individual cell groups through its balance or sense connections.

Cell voltage differences can occur because of variations in cell capacity, internal resistance, age, temperature and usage.

Monitoring individual cell groups helps the BMS detect abnormal voltage conditions.

Cell Balancing

The 16S 48V 60A LFP BMS can support cell balancing on compatible versions.

Cell balancing helps reduce voltage differences between the individual series-connected cell groups.

Balancing is particularly useful during charging, when differences between cell groups become more noticeable.

The exact balancing method and balancing current depend on the BMS model.

Temperature Protection

Some 16S 48V 60A LFP BMS versions include temperature sensors.

Temperature monitoring can help protect the battery or BMS when the temperature becomes too high or too low according to the configured protection limits.

The exact number of temperature sensors and protection thresholds depend on the specific model.

Electric Vehicle Applications

The 16S 48V 60A LFP BMS can be used in compatible electric vehicle battery packs.

Potential applications include:

• Electric scooters
• E-bikes
• Electric motorcycles
• Low-speed electric vehicles
• Custom EV battery packs

A 60A BMS can support higher-current applications, but the motor controller and battery cells must also be capable of handling the required current.

Solar Energy Storage

The 16S 48V 60A LFP BMS is suitable for compatible solar battery and energy-storage applications.

It can be used with appropriately matched solar chargers, inverters and LiFePO4 battery packs.

For a 16S LiFePO4 battery, the typical nominal voltage is 51.2V, with a maximum charging voltage of approximately 58.4V.

The solar charge controller or inverter should be compatible with the battery’s actual voltage range.

Backup Power Systems

The 16S 48V 60A LFP BMS can be used in compatible backup power and UPS battery systems.

LiFePO4 battery packs can provide a suitable solution for repeated charging and discharging when the complete system is correctly designed.

The inverter, charger and BMS should all be matched to the battery configuration.

Custom LiFePO4 Battery Packs

The 16S 48V 60A LFP BMS can be integrated into custom LiFePO4 battery packs.

It can be used with compatible:

• Cylindrical LiFePO4 cells
• Prismatic LiFePO4 cells
• Pouch LiFePO4 cells

The cells should be properly matched for chemistry, voltage, capacity and discharge capability.

Before installing the BMS, verify the voltage of all 16 cell groups.

BMS Wiring

Correct wiring is essential when installing the 16S 48V 60A LFP BMS.

The balance wires must be connected to the correct cell groups in the correct sequence.

The main positive and negative connections must also follow the manufacturer’s wiring diagram.

Incorrect balance-wire sequence or polarity can damage the BMS and battery pack.

Always follow the wiring diagram supplied with the exact BMS model.

Charger Compatibility

A typical 16S LiFePO4 battery has a maximum charging voltage of approximately 58.4V.

Therefore, use a charger specifically designed for a 16S LiFePO4 battery.

Do not select a charger only because it is labelled “48V.” The charging voltage must match the actual battery chemistry and series configuration.

Why Choose 16S 48V 60A LFP BMS?

The 16S 48V 60A LFP BMS provides a practical battery protection solution for 16-series LiFePO4 battery packs.

Its 60A continuous discharge rating makes it suitable for applications requiring higher current, including electric mobility, solar storage, backup power and custom battery projects.

The BMS helps monitor individual cell groups and can provide protection against common abnormal battery conditions.

When correctly matched with the battery cells and electrical system, the 16S 48V 60A LFP BMS can be a suitable choice for medium-to-high current LiFePO4 battery applications.
