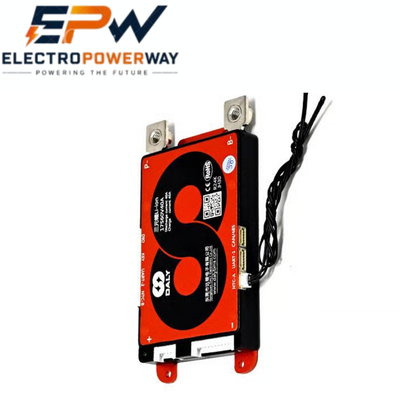

17S 60V 40A BMS Li-ion
The 17S 60V 40A BMS Li-ion is a Battery Management System designed for 17-series lithium-ion battery packs. It is designed to provide battery protection and monitoring for 60V-class Li-ion battery applications. With a 40A continuous discharge rating, the 17S 60V 40A BMS Li-ion is suitable for a variety of electric mobility, energy storage and custom battery applications.
A Battery Management System is an important part of a lithium-ion battery pack. It monitors the battery cells and helps protect them from abnormal voltage, current and temperature conditions according to the configured protection parameters. The 17S 60V 40A BMS Li-ion is suitable for battery pack builders, EV technicians, e-bike manufacturers, electric scooter users and DIY battery pack projects.
17S 60V Li-ion Configuration
The 17S 60V 40A BMS Li-ion is designed for a battery pack containing 17 cells or cell groups connected in series.
For standard Li-ion cells with approximately 3.6â3.7V nominal voltage, a 17S pack is commonly described as a 60V-class lithium-ion battery. A typical 17S Li-ion pack has approximately 61.2â62.9V nominal voltage, depending on the cell’s nominal voltage.
With a standard 4.2V maximum voltage per cell, the full-charge voltage of a 17S Li-ion battery pack is approximately 71.4V.
Therefore, the 17S 60V 40A BMS Li-ion should be used with a charger specifically matched to a 17S Li-ion battery pack.
40A Continuous Discharge Current
The 17S 60V 40A BMS Li-ion is designed for 40A continuous discharge. This makes it suitable for applications requiring moderate to high continuous battery current.
The complete battery system’s current capability depends on more than the BMS. Battery cells, busbars, nickel strips, cables, connectors, fuse and motor controller should all be appropriately rated for the intended current.
Some commercially available 17S 60V 40A Li-ion BMS products specify 40A continuous discharge and different charging-current limits depending on the model.
Lithium-ion Battery Protection
The primary purpose of the 17S 60V 40A BMS Li-ion is to help protect the connected battery pack during charging and discharging.
Depending on the exact BMS model, common protection functions can include:
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short-circuit protection
- Temperature protection
- Cell voltage monitoring
- Cell balancing
These functions help prevent the battery from operating outside its configured protection limits.
Cell Voltage Monitoring
A 17S battery pack contains 17 series-connected cell groups. Individual cell groups can develop voltage differences during charging and discharging because of differences in capacity, internal resistance, age and usage.
The 17S 60V 40A BMS Li-ion monitors the individual series cell groups through its balance or sense connections.
This monitoring allows the BMS to identify abnormal cell voltage conditions and activate the relevant protection function according to its design.
Cell Balancing
A compatible 17S 60V 40A BMS Li-ion may include cell balancing. Balancing helps reduce voltage differences between individual series-connected cells or cell groups during charging.
The exact balancing method and balancing current depend on the BMS model. Some 17S 40A BMS products use passive balancing, while other smart BMS versions can have different balancing configurations.
Overcharge Protection
Overcharging lithium-ion cells can damage the cells and create unsafe operating conditions. The BMS monitors individual cell voltage and can disconnect the charging circuit when a configured overcharge threshold is reached.
For a typical 17S Li-ion configuration with a 4.2V maximum cell voltage, the complete pack charging voltage is approximately 71.4V.
Always use a compatible 17S Li-ion charger.
Over-Discharge Protection
The 17S 60V 40A BMS Li-ion can provide over-discharge protection according to its configured parameters. If an individual cell group falls below the specified low-voltage threshold, the BMS can disconnect the discharge circuit.
This helps reduce the possibility of excessive discharge of individual battery cells.
Overcurrent Protection
The BMS monitors current flowing through the battery protection circuit. If the current exceeds the configured protection threshold, the BMS can disconnect the output according to its design.
The 40A continuous discharge rating should not be interpreted as the exact overcurrent trip point. The protection threshold depends on the specific BMS model.
Short-Circuit Protection
A short circuit can cause a rapid increase in current. A compatible 17S 60V 40A BMS Li-ion can provide short-circuit protection by disconnecting the battery output when a short-circuit condition is detected.
The response time and recovery behavior depend on the particular BMS design.
Temperature Protection
Some 17S 60V 40A BMS Li-ion versions include temperature sensors for monitoring battery or BMS temperature.
Temperature monitoring can be particularly useful in EVs, e-bikes, electric scooters and other applications where the battery may experience continuous loads.
Exact temperature limits and sensor configuration are model dependent. Commercial 17S 40A versions are available with thermal protection and NTC temperature monitoring.
Applications
The 17S 60V 40A BMS Li-ion can be used for:
- Electric vehicles
- Electric scooters
- E-bikes
- Electric motorcycles
- 60V hub motor systems
- Solar energy storage
- Backup power systems
- Portable power systems
- DIY lithium-ion battery packs
- Robotics
- Industrial equipment
- Custom EV battery packs
Suitable for 60V EV Battery Packs
The 17S 60V 40A BMS Li-ion is suitable for many 60V-class electric mobility applications where the battery configuration is 17S Li-ion.
A 40A BMS can be suitable for moderate-power motor systems, provided the battery cells and other electrical components can safely support the required current.
The actual motor power should not be calculated from the BMS rating alone because battery voltage, controller current, motor efficiency and operating conditions also affect power.
Custom Battery Pack Assembly
The 17S 60V 40A BMS Li-ion can be integrated into custom battery packs when the battery configuration matches the BMS specifications.
It can be used with appropriately matched cylindrical, pouch or prismatic Li-ion cells.
Before assembly, the cells should be properly matched for chemistry, voltage, capacity and condition. The balance wires must be connected to the correct cell-group sequence according to the BMS wiring diagram.
Incorrect balance-wire installation can damage the BMS or battery cells.
Charging Voltage
For a standard 17S Li-ion battery configuration, the typical maximum charging voltage is:
17 Ã 4.2V = 71.4V
Therefore, a 71.4V Li-ion charger is commonly used for a standard 17S Li-ion battery pack.
The exact charging current must be confirmed from the BMS model and battery-cell specifications. Different 17S 40A BMS models can have different charge-current ratings.
Common Port and Separate Port Options
The exact port configuration depends on the selected BMS model.
Some 17S 60V 40A BMS Li-ion versions use a common port for charging and discharging, while other versions use separate charging and discharging ports.
Always check the terminal labels and wiring diagram before installation.
