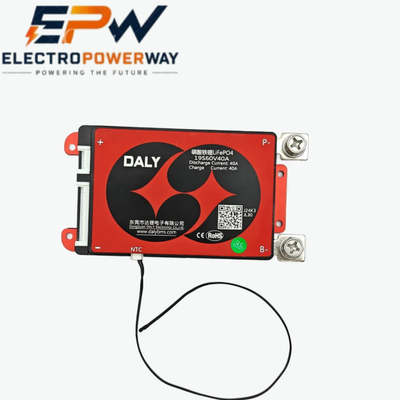

The 19S 60V 40A LFP BMS is a Battery Management System designed for 19-series LiFePO4 (LFP) battery packs. It is intended to provide essential battery protection and monitoring for 60V-class lithium iron phosphate battery systems. With a 40A continuous discharge rating, this BMS is suitable for a range of medium-power applications such as electric vehicles, electric scooters, e-bikes, solar energy storage, backup power systems and custom LiFePO4 battery packs.

A Battery Management System is an important part of a lithium battery pack because it monitors cell conditions and helps protect the battery against abnormal operating conditions. The 19S 60V 40A LFP BMS is designed for users who need a protection and management solution specifically matched to a 19S LiFePO4 configuration.

19S LiFePO4 Battery Configuration

The 19S 60V 40A LFP BMS is designed for 19 cells or cell groups connected in series. A typical LiFePO4 cell has a nominal voltage of approximately 3.2V. Therefore, a 19S LiFePO4 battery pack has a nominal voltage of approximately 60.8V.

Using a typical 3.65V maximum charging voltage per LFP cell, a 19S pack can reach approximately 69.35V at full charge.

Therefore, this battery configuration is commonly referred to as a 60V LFP battery system.

The actual charging voltage must always be matched with the exact LiFePO4 cells and BMS specifications.

40A Continuous Discharge

This 19S 60V 40A LFP BMS is designed for a 40A continuous discharge rating. It is suitable for battery applications requiring continuous current within the BMS rating.

The BMS rating alone does not determine the maximum current capability of the complete battery pack. The LiFePO4 cells, busbars, nickel strips, cables, connectors, fuse and controller must also be appropriately rated for the intended current.

LiFePO4 Battery Protection

The primary purpose of the 19S 60V 40A LFP BMS is to help protect the battery pack from abnormal electrical conditions.

Depending on the exact model, protection functions may include:

• Overcharge protection
• Over-discharge protection
• Overcurrent protection
• Short-circuit protection
• Temperature protection
• Cell voltage monitoring
• Cell balancing

These functions help keep the battery pack within its configured operating limits.

Cell Voltage Monitoring

A 19S battery pack contains 19 series-connected cell groups. During normal charging and discharging, individual cells may develop differences in voltage due to variations in capacity, internal resistance, age and usage.

The 19S 60V 40A LFP BMS monitors individual series cell groups through its balance/sense wiring. This allows the BMS to identify abnormal cell voltage conditions and respond according to its protection settings.

Individual cell monitoring is particularly important in series battery packs because the voltage of each cell group contributes to the total battery voltage.

Cell Balancing

A compatible 19S LFP BMS can provide cell balancing to help reduce voltage differences between individual series-connected cell groups.

Balancing helps maintain better voltage consistency across the battery pack during charging. This can help improve the usable performance of a properly matched battery pack.

The exact balancing method and balancing current depend on the specific BMS model.

Overcharge Protection

LiFePO4 cells need to remain within their recommended charging voltage. The BMS monitors individual cell-group voltage and can activate overcharge protection when the configured voltage threshold is reached.

For a typical 19S LiFePO4 configuration using a 3.65V maximum cell voltage, the maximum pack charging voltage is approximately 69.35V.

A charger designed specifically for the 19S LiFePO4 configuration should be used.

Over-Discharge Protection

The 19S 60V 40A LFP BMS can provide over-discharge protection according to its configured parameters. If a cell group falls below the specified protection threshold, the BMS can disconnect the discharge circuit.

This helps reduce the possibility of excessive discharge of individual LiFePO4 cells.

Overcurrent Protection

The BMS monitors current flowing through the battery protection circuit. If the current exceeds the configured protection threshold, the BMS can disconnect the output according to its design.

The 40A continuous discharge rating should not be interpreted as the exact overcurrent trip point. The actual protection threshold depends on the particular BMS model.

Short-Circuit Protection

A short circuit can result in very high current flow. A compatible 19S 40A LFP BMS can provide short-circuit protection by disconnecting the battery output when a short-circuit condition is detected.

The exact response and recovery behavior are model-specific.

Temperature Protection

Some 19S 60V 40A LFP BMS versions include temperature sensors for monitoring the battery or BMS temperature.

Temperature protection can be useful in electric vehicles, electric scooters, e-bikes and energy-storage applications where the battery may experience continuous current loads.

Exact temperature limits and sensor configuration depend on the specific BMS model.

Applications

The 19S 60V 40A LFP BMS can be used in various LiFePO4 battery applications, including:

• Electric vehicles
• Electric scooters
• Electric motorcycles
• E-bikes
• Solar energy storage
• Backup power systems
• UPS systems
• DIY LiFePO4 battery packs
• Portable power systems
• Robotics
• Industrial equipment
• Custom battery projects

Suitable for Custom Battery Packs

The 19S 60V 40A LFP BMS is suitable for custom battery pack assembly when the battery chemistry, cell configuration and electrical requirements match the BMS.

It can be used with compatible LiFePO4 cylindrical, prismatic or pouch cells. The cells should have suitable capacity and discharge characteristics for the intended application.

The balance/sense wires must be connected to the correct cell-group sequence. Incorrect wiring can damage the BMS or battery cells.

60V LFP Battery System

A 19S LiFePO4 battery pack is commonly described as a 60V LFP battery system. With approximately 3.2V nominal voltage per cell, 19 cells in series provide approximately 60.8V nominal.

At a typical 3.65V maximum cell voltage, the complete 19S battery pack reaches approximately 69.35V when fully charged.

This makes the 19S 60V 40A LFP BMS suitable for applications designed around the 19S LiFePO4 voltage range.

Why Choose 19S 60V 40A LFP BMS?

The 19S 60V 40A LFP BMS provides a practical battery management and protection solution for 19-series LiFePO4 battery packs.

Its 40A continuous discharge rating makes it suitable for medium-current applications, while cell monitoring and protection functions help manage battery operation.

It is suitable for EV battery builders, electric mobility applications, battery repair workshops, DIY battery pack manufacturers and energy-storage projects.
