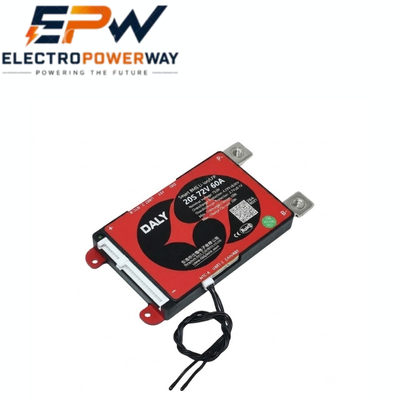

20S 72V 60A BMS Battery Management System

20S 72V 60A BMS Battery Management System

The 20S 72V 60A BMS Battery Management System is a high-current battery protection and management solution designed for 20-series lithium-ion battery packs. It is suitable for battery systems where reliable cell monitoring, protection and controlled charging and discharging are required. With a 20S configuration and 60A continuous discharge rating, this BMS is designed for medium- to high-power applications including electric vehicles, electric scooters, e-bikes, custom lithium battery packs, energy storage systems and other battery-powered equipment. Similar 20S 72V 60A BMS products are specified for lithium-ion/NMC battery configurations and 60A continuous discharge.

20S 72V Battery Configuration

The 20S 72V BMS is designed for a battery pack containing 20 cells or cell groups connected in series. For conventional lithium-ion cells with a nominal voltage around 3.6V per cell, a 20S configuration is commonly referred to as a 72V battery system. A fully charged 20S Li-ion pack can reach approximately 84V, depending on the cell chemistry and charging specification.

Because battery voltage varies according to chemistry, users should always match the BMS with the exact battery cells being used. The charger must also be compatible with the battery chemistry and BMS charging voltage.

60A Continuous Discharge Current

This 20S 60A BMS provides a continuous discharge rating of up to 60A, making it suitable for battery systems requiring substantial continuous current. The actual usable output also depends on the battery cells, wiring, connectors, controller, MOSFET configuration and thermal conditions.

A 60A BMS can be used in applications where the battery needs to deliver significant power while maintaining protection against abnormal current conditions. For demanding EV applications, users should also consider the controller’s peak current and whether the BMS is suitable for the required peak load.

Battery Protection

One of the most important functions of a 72V 60A BMS is protecting the battery pack against abnormal operating conditions. Depending on the specific version, protection functions can include overcharge, over-discharge, over-current, short circuit and temperature protection.

These protection functions help prevent individual cells and the complete battery pack from operating outside their intended voltage and current limits.

Overcharge Protection

Overcharging lithium-ion cells can negatively affect battery safety and service life. The BMS monitors individual series cell voltages and can activate protection when a cell or cell group reaches its configured overcharge threshold.

This makes proper BMS selection particularly important for a 20S battery pack. The BMS charging voltage and cell chemistry must match the battery pack and charger.

Over-Discharge Protection

Deep discharge can damage lithium-ion cells and reduce their useful life. The 20S 72V 60A BMS monitors the cell groups and can disconnect the discharge circuit when the voltage falls below the configured protection level.

This helps protect the battery from excessive discharge during applications such as EVs, e-bikes, scooters and energy-storage systems.

Over-Current Protection

The BMS also provides current protection according to its programmed parameters. If the battery current exceeds the specified protection threshold, the BMS can disconnect the battery output to help protect the cells and electronic components.

The 60A continuous rating should not be interpreted as an unlimited peak-current rating. Peak current capability varies by BMS design, MOSFETs, thermal conditions and manufacturer specifications.

Short-Circuit Protection

Short circuits can create extremely high current and potentially damage battery cells, wiring and electronic components. A compatible BMS can detect a short-circuit condition and activate protection to disconnect the battery circuit.

Some 20S 60A BMS models also provide automatic recovery after a short-circuit protection event.

Cell Balancing

The 20S 72V 60A BMS can include a cell balancing function that helps manage voltage differences between individual series-connected cell groups.

Cell balancing is particularly useful in a large 20S battery pack because even small differences between cells can increase over time. Maintaining better voltage consistency can help the battery pack operate more efficiently and use its available capacity more effectively.

Specific balancing current and balancing method vary by BMS model, so the exact product datasheet should be checked before installation.

Temperature Monitoring

Temperature monitoring is another important BMS function. Depending on the model, temperature sensors such as NTC sensors can monitor battery or BMS temperature and trigger protection when configured temperature limits are exceeded.

Temperature protection is especially useful in high-current applications where the battery and BMS may experience increased heat during charging or discharging.

Smart BMS Options

Some 20S 72V 60A BMS versions are available with smart communication functions such as CAN, UART or RS485. These versions can provide battery information and monitoring capabilities for compatible controllers, displays or other equipment.

However, communication functionality should not be assumed for every 20S 72V 60A BMS. Always verify whether the particular model includes CAN, RS485, UART, Bluetooth or another communication interface.

Common Port Configuration

Some 20S 72V 60A BMS models use a common-port design, where charging and discharging share a common connection. This can simplify wiring for compatible battery pack designs.

The exact terminal arrangement varies between BMS models, so installation should always follow the supplied wiring diagram.

Applications

The 20S 72V 60A Battery Management System is suitable for a wide range of lithium battery applications, including:

• Electric vehicles
• Electric scooters
• Electric bikes
• Electric motorcycles
• Custom 72V lithium battery packs
• Solar energy storage
• Backup power systems
• Portable power systems
• Industrial battery systems
• DIY battery projects
• Robotics and electric mobility applications

20S 72V BMS products are commonly marketed for EV, scooter, energy storage and other lithium battery applications.

Ideal for Custom Battery Pack Builders

For battery manufacturers, EV technicians and DIY battery builders, a 20S 72V 60A BMS provides a practical protection solution for 20-series lithium battery packs.

The BMS can be integrated into a battery pack after confirming the battery chemistry, series configuration, charging voltage, current requirements and connector configuration. Proper installation is essential because incorrect balance-wire connections can damage the BMS or battery pack.
